Wax Resin Ribbon Uses: What Are They Best For?

Key Highlights

• Wax resin ribbons combine wax and resin compounds to deliver clearer barcode printing and stronger durability than standard wax ribbons.

• They are compatible with multiple label materials, including coated paper, gloss paper, synthetic paper, polyethylene, polypropylene, BOPP, Kimdura, and Valeron.

• Wax resin ribbons are commonly used for logistics labels, retail product labeling, warehouse inventory tracking, and packaging identification across different industries.

• They provide a practical balance between durability and cost, making them suitable for applications that do not require full resin ribbon performance.

• Choosing the right wax resin ribbon depends on printer compatibility, such as Zebra desktop or industrial printers; label material; ribbon size; and the durability required for the application.

Barcode labels that smudge, fade, or fail to scan can disrupt packaging, shipping, and inventory operations. Choosing the wrong thermal transfer ribbon often leads to poor print quality, label damage during handling, and unnecessary reprints.

Wax resin ribbons are designed to solve this challenge by offering better durability than wax ribbons while remaining more affordable than full resin ribbons. They work with a wide range of label materials and are commonly used for barcode labels in logistics, retail, packaging, and warehouse environments.

This guide explains wax-resin ribbon uses, how they work in thermal transfer printing, which materials they support, and how to choose the right ribbon for reliable barcode printing.

What Is a Wax Resin Thermal Transfer Ribbon?

A wax resin thermal transfer ribbon is used in thermal transfer printers to produce durable barcodes, text, and graphics on labels. Made from a combination of wax and resin, it delivers stronger durability than wax ribbons while remaining more affordable than full resin options. It is often considered the most common type of thermal transfer ribbon used across many commercial labeling operations.

During printing, the thermal printhead applies heat to transfer ink from the ribbon onto the label surface, producing sharp, smudge resistant prints. Using the correct ribbon core size and ensuring the ribbon is compatible with systems such as Printronix printers helps maintain consistent print quality and reliable performance.

Because they balance cost and durability, wax resin ribbons remain an essential solution for many barcode labeling environments.

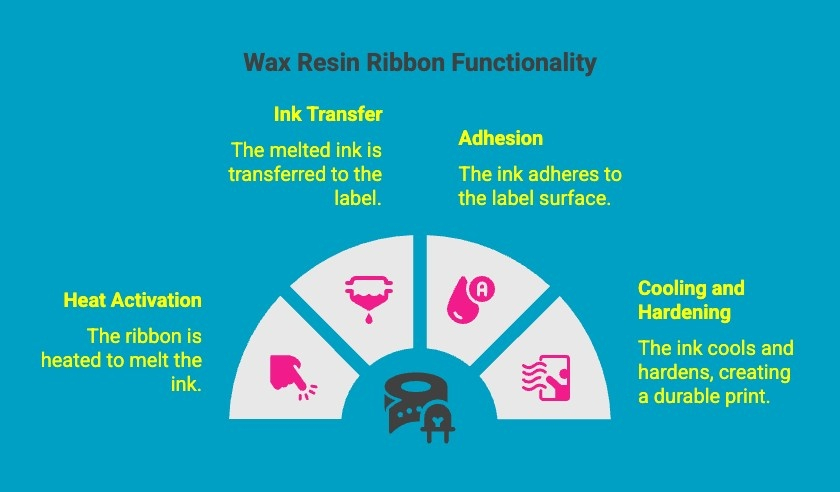

How Do Wax Resin Ribbons Work in Thermal Transfer Printing?

Wax resin ribbons operate through a controlled heat transfer process that bonds ink to the label surface. When matched with the brand of the printer, they can be the best option for producing reliable barcodes and durable labels across many applications.

Below are the key steps involved in thermal transfer printing with wax resin ribbons:

• Heat Activation: The printer’s thermal printhead heats specific points on the ribbon based on the print design.

• Ink Transfer: The wax resin coating melts and transfers ink from the ribbon onto the label material.

• Adhesion to the Label Surface: The melted mixture bonds to the label, forming durable barcodes and text.

• Cooling and Hardening: The ink quickly solidifies, helping labels maintain durability during handling, storage, and shipping.

Important setup note: If the heat setting is too low for a wax resin ribbon, ink may transfer incompletely, producing faint or patchy barcodes. If the heat setting is too high, the ribbon may wrinkle or increase wear on the printhead. Start with a mid-range darkness setting and increase gradually until the print quality is clear and consistent.

New to thermal label printing? Understanding how thermal printing works can help you choose the right ribbon, label material, and printer settings for better barcode quality and durability.

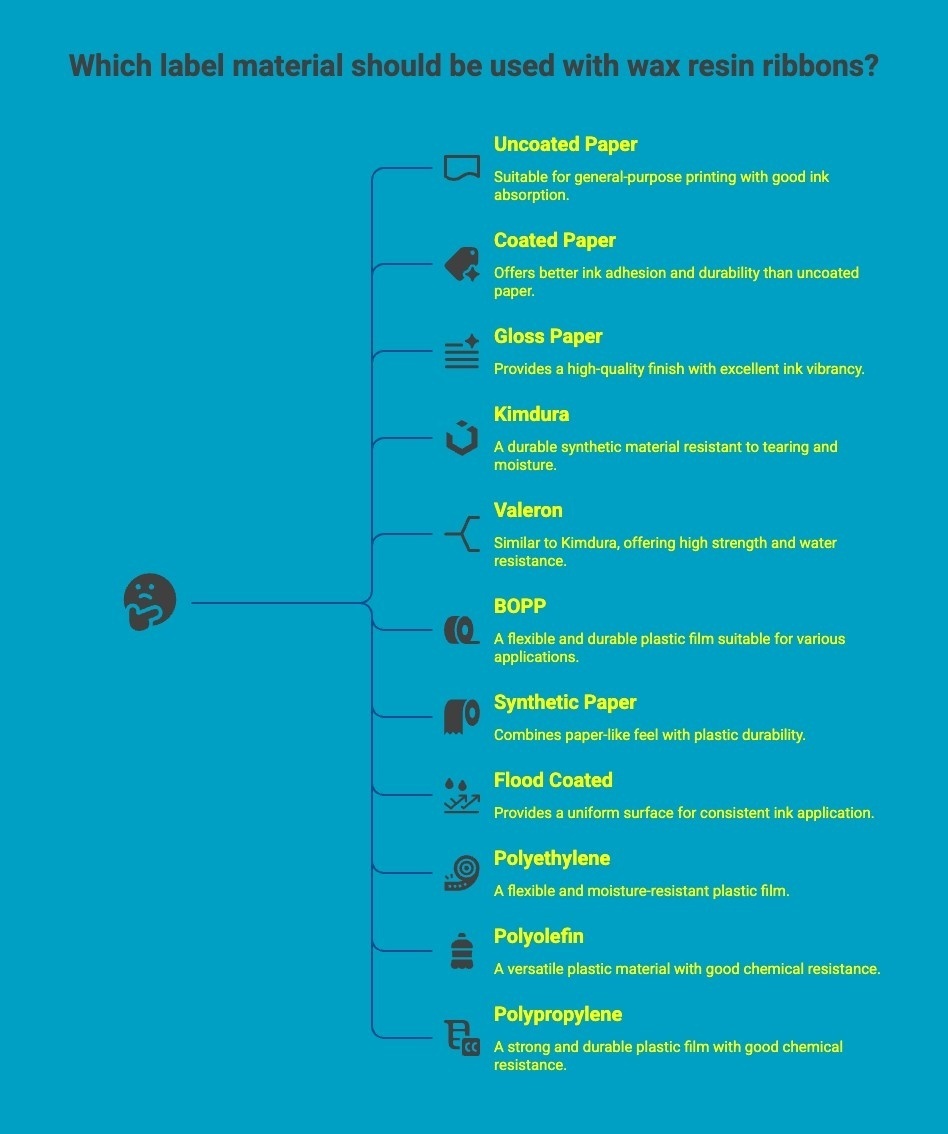

What Label Materials Work Best With Wax Resin Ribbons?

Wax resin ribbons are designed to work with a wide range of label materials, making them versatile for many commercial labeling environments.

Common label materials compatible with wax resin ribbons include:

• Uncoated paper labels

• Most coated paper labels

• Most gloss paper labels

• Kimdura label material

• Valeron label material

• BOPP (biaxially oriented polypropylene) labels

• Synthetic paper labels

• Flood coated labels

• Polyethylene labels

• Some polyolefin labels

• Polypropylene labels

These materials allow wax resin ribbons to produce durable barcodes that remain readable during handling, packaging, and shipping processes.

Materials Not Compatible With Wax Resin Ribbons

Some materials require full resin ribbons because wax resin formulations cannot properly bond to them.

Wax resin ribbons typically do not work well with the following:

• Vinyl labels

• Polystyrene label materials

For these materials, resin ribbons are recommended to ensure proper durability and print adhesion.

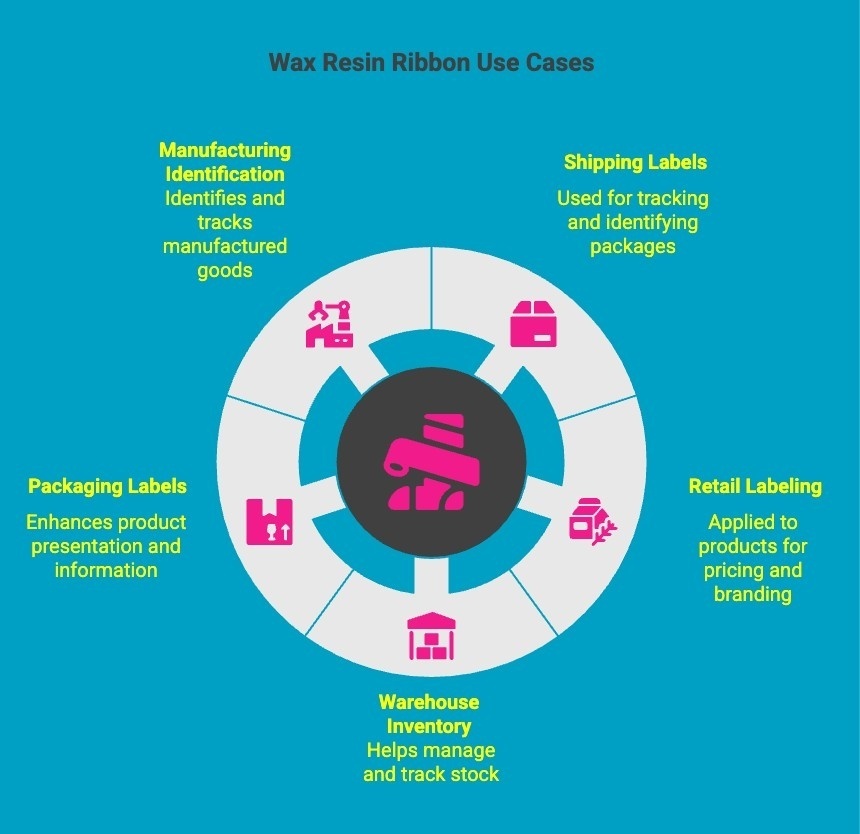

What Are the Best Use Cases for Wax Resin Ribbons?

Wax resin ribbons are commonly used in applications where labels must remain readable through moderate handling, friction, and transportation. Their reliable printing process helps produce consistent barcodes and text across many labeling environments.

Below are common use cases for wax resin ribbons:

• Shipping and Logistics Labels: Used for shipping barcodes, carton labels, and distribution labels.

• Retail Product Labeling: Suitable for price tags, product identification labels, and shelf labeling.

• Warehouse Inventory Labels: Ideal for bin labels, pallet identification, and asset tracking.

• Packaging Labels: Used for labeling packaged goods and product cartons.

• Manufacturing Identification Labels: Helpful for product tracking and internal manufacturing processes.

These applications benefit from wax-resin ribbons because they combine barcode clarity with moderate durability, offering an apples-to-apples comparison between wax and resin performance on a case basis.

Want to reduce labeling costs and gain more control over your operations? DIY label printing helps businesses streamline workflows, print labels on demand, and reduce long-term labeling expenses.

How Does Wax Resin Compare to Wax and Resin Ribbons?

Wax resin ribbons fall between wax ribbons and full resin ribbons in terms of durability and price.

Ribbon Type	Durability	Best Label Materials	Best Environments	Typical Applications	Max Print Speed
Wax Ribbon	Low to moderate	Paper labels	Low abrasion, indoor environments	Retail tags, basic shipping labels	High
Wax Resin Ribbon	Moderate to high	Coated paper and some synthetic labels	Warehouses, logistics operations, moderate handling environments	Logistics, warehouse, product labels	Medium to high
Resin Ribbon	Very high	Synthetic labels such as polyester or vinyl	Harsh environments, outdoor exposure, chemical or abrasion heavy areas	Chemical labels, outdoor tags, industrial environments	Medium

Wax resin ribbons provide a balanced solution for businesses that need stronger durability than wax ribbons without the higher cost of resin ribbons.

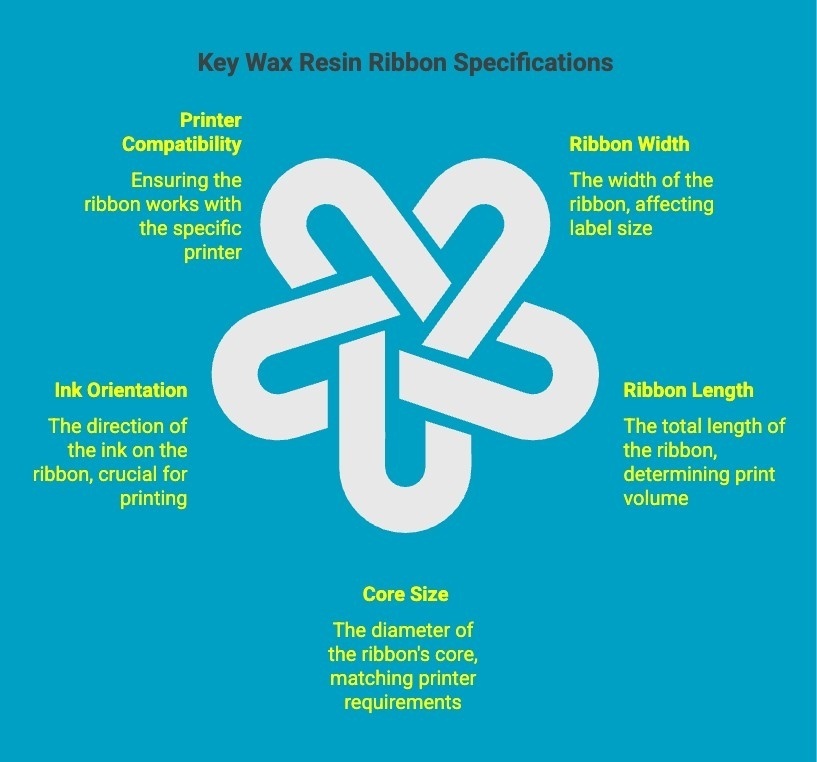

What Wax Resin Ribbon Specifications Should Buyers Know?

Choosing the correct ribbon specifications ensures consistent print quality and reliable printer compatibility.

Key specifications buyers should review include the following:

• Ribbon Width: The ribbon should always be slightly wider than the label width. This protects the printhead from direct contact with the label surface and helps prevent uneven printing or premature printhead wear.

• Ribbon Length: Ribbon length determines how often rolls need to be replaced. Desktop printers usually use shorter ribbons for lower-volume printing, while industrial printers support longer rolls designed for continuous, high-volume production.

• Core Size: Ribbon cores must match the spindle size inside the printer. Most desktop printers use ½ ½-inch cores, while industrial printers typically use 1-inch cores to support larger ribbon rolls and longer print runs.

• Ink Orientation: Thermal ribbons come in ink-in or ink-out configurations. The ribbon must match the printer’s required orientation so the ink coating faces the label correctly during printing.

• Printer Compatibility: Always confirm that the ribbon specifications match the printer model. Compatibility with brands such as Zebra or other thermal printers ensures proper ribbon movement, correct tension, and consistent print quality.

Understanding these specifications helps maintain smooth printing operations, reduce printer wear, and ensure reliable ribbon performance across different labeling applications.

How Does Wax Resin Ribbon Price Compare to Performance?

When selecting thermal transfer ribbons, price and durability are key considerations.

Below is a comparison of wax, wax resin, and resin ribbons:

Ribbon Type	Price Range	Durability	Best Materials	Performance
Wax Ribbon	Low	Low to moderate	Paper labels	Affordable for basic labeling
Wax Resin Ribbon	Medium	Moderate to high	Coated paper and synthetic labels	Balanced cost and durability
Resin Ribbon	High	Very high	Polyester, polypropylene, vinyl	Maximum durability and chemical resistance

Wax resin ribbons provide a strong balance of affordability and durability for many commercial labeling applications.

Which Zebra Wax Resin Ribbons Are Commonly Used?

Many businesses rely on Zebra-compatible wax-resin ribbons for reliable barcode printing across desktop and industrial printers.

Below are commonly used wax resin ribbon options:

1) Zebra 2.20" x 243 Feet TDM238 Wax Resin Premium Ribbon

Printer Class: Desktop

Designed for 2-inch Zebra desktop printers, this ribbon delivers sharp barcode printing for small label formats and compact printers used in retail, healthcare, and logistics.

Recommended setting: For Zebra ZD420 on coated paper, use a darkness setting of 18–22. Adjust upward by 2 points when printing on synthetic label materials.

2) Zebra 4.33" x 243 Feet TDM238 Wax Resin Ribbon

Printer Class: Desktop

Commonly used in Zebra 4-inch desktop printers, this ribbon supports reliable barcode printing for shipping labels, warehouse tracking labels, and product identification.

Recommended setting: For Zebra ZD420 on coated paper, use a darkness setting of 18–22. Adjust upward by 2 points for synthetic materials.

3) Zebra 4.33" x 984 Feet TDM238 Wax Resin Ribbon

Printer Class: Desktop

Compatible with Zebra ZD420 and ZD620 4-inch desktop printers, this longer ribbon roll helps reduce ribbon changes in moderate- to high-volume printing environments.

Recommended setting: For Zebra ZD420 on coated paper, use a darkness setting of 18–22. Increase by 2 points when printing on synthetic labels.

4) Zebra 4.33" x 1476 Feet TDM238 Wax Resin Ribbon

Printer Class: Industrial

Designed for Zebra industrial printers, this ribbon supports high-volume production environments where longer ribbon rolls improve operational efficiency and reduce downtime.

Recommended setting: For Zebra ZD420 on coated paper, use a darkness setting of 18–22. Adjust upward by 2 points for synthetic label materials.

How Do You Choose the Right Wax Resin Ribbon?

Selecting the right wax resin ribbon depends on the printer model, label material, and application requirements.

Below are important factors to consider:

• Printer type and printhead compatibility

• Label material used in the application

• Required ribbon width and length

• Durability needed for the label environment

Choosing the correct ribbon ensures reliable printing performance, longer printhead life, and consistent barcode readability.

Why Are Wax Resin Ribbons a Popular Choice in Packaging?

Wax resin ribbons are widely used in packaging because they deliver strong barcode clarity and improved durability compared to standard wax ribbons. An enhanced wax resin barcode ribbon produces sharper barcodes and more reliable label printing for shipping labels, carton labels, and product identification used in packaging workflows.

These ribbons work with many packaging label materials and perform best when the label’s coated side is aligned correctly. Maintaining a little gap between labels during printing helps ensure smooth label feeding and consistent barcode placement across packaging and logistics operations.

An enhanced wax resin barcode ribbon is also compatible with many thermal transfer systems, including SATO printers used in warehouse environments. With dependable delivery and reliable printing performance, these ribbons remain a practical choice for producing high quality barcode labels across packaging and supply chain operations.

Thinking about printing labels in house? In-house label printing can reduce costs, improve production control, and increase efficiency across packaging and logistics operations.

Where Can You Buy Reliable Wax Resin Ribbons?

Choosing the right ribbon supplier is just as important as selecting the correct ribbon type. Poor-quality ribbons can cause inconsistent printing, ribbon breakage, and premature printhead wear, which increases downtime and operational costs.

DuraFast Label Company supplies high-quality wax-resin thermal transfer ribbons designed for reliable barcode printing across Zebra, Honeywell, SATO, Printronix, and other compatible printers. Their ribbons are tested to deliver consistent print quality on coated paper and synthetic label materials used in logistics, warehousing, manufacturing, and retail environments.

Businesses choose DuraFast Label because they offer the following:

• A wide selection of wax, wax resin, and resin ribbons for both desktop and industrial printers

• Zebra-compatible ribbon sizes and configurations for common labeling applications

• Reliable performance designed to protect printheads and maintain barcode clarity

• Expert support to help select the correct ribbon for your printer and label material

• Fast shipping across North America to keep labeling operations running smoothly

Need help selecting the right ribbon? Contact DuraFast Label Company today to speak with a labeling specialist and find the best ribbon for your printer and labeling requirements.

Conclusion

In many labeling environments, choosing the right ribbon barcode wax resin solution helps ensure consistent print quality and durability. Businesses often prefer the barcode wax resin ribbon because it delivers strong performance on coated labels and synthetic materials while avoiding the smudging often seen with standard wax ribbons.

Wax resin ribbons perform best when printers are calibrated for the correct ribbon orientation and label size, including the length of their label or longer-length label formats used in shipping and logistics. Most printers include loading guides with green arrows that show the correct direction for installing the ribbon outside of your ribbon roll.

When ordering ribbons, businesses should also review delivery options such as FedEx Ground, LTL shipping, or any expedited shipping charge. Orders typically ship within a few days of your order, and a collect account can simplify freight billing if needed.

Frequently Asked Questions

What are wax/resin ribbon uses?

Wax/resin ribbons are widely used in industrial applications such as shipping labels, warehouse tracking, and product identification. The resin component helps produce high durability and reliable barcode printing across different materials used with zebra printers and other thermal transfer systems.

Are wax/resin ribbons good for barcode printing?

Yes, wax/resin ribbons are ideal for barcode printing because the resin component improves ink adhesion and clarity. This helps prevent poor quality barcodes and ensures labels remain readable on coated paper and synthetic materials during shipping and warehouse handling.

How durable is a wax/resin thermal transfer ribbon?

Wax/resin ribbons provide high durability compared with basic wax ribbons. The resin component improves resistance to abrasion and handling, allowing labels to maintain durable prints across logistics environments and industrial labeling operations using different label materials.

Is wax resin ribbon more expensive than wax ribbon?

Yes, wax/resin ribbons typically cost more than wax ribbons because the resin component improves durability and print quality. However, they remain a much lower cost alternative to resin ribbons while still offering reliable performance for many labeling applications.

When should I choose wax resin over resin ribbon?

Choose wax/resin ribbons when labels require durability but are not exposed to extreme temperatures or chemicals. They provide a strong balance of durability for shipping labels, warehouse barcodes, and packaging labels printed on coated or synthetic materials.

What printing conditions are ideal for using wax resin ribbons to get the best results?

Wax/resin ribbons perform best when printers are calibrated for the correct ink configuration and the ribbon matches the label’s width. Always double check heat settings and confirm the length of your label or exact length label settings.

Where can I buy high quality wax resin ribbons online?

You can purchase wax/resin ribbons directly from the product page of our website at DuraFast Label Company. Convenient online ordering, flexible payment option choices, and multiple credit card options help businesses order labeling supplies efficiently.

Are wax resin ribbons suitable for outdoor or harsh environment labels?

Wax/resin ribbons provide reliable printing for many indoor labeling environments. However, labels exposed to harsh chemicals or extreme temperatures typically require resin ribbons to maintain durability and prevent barcode damage over time.

What should I do if I receive a defective ribbon order?

If you receive a defective product, contact supplier customer service and follow the return instructions printed outside of the return package. Replacement ribbons are typically shipped quickly to ensure supplies arrive in pristine condition for printing operations.
